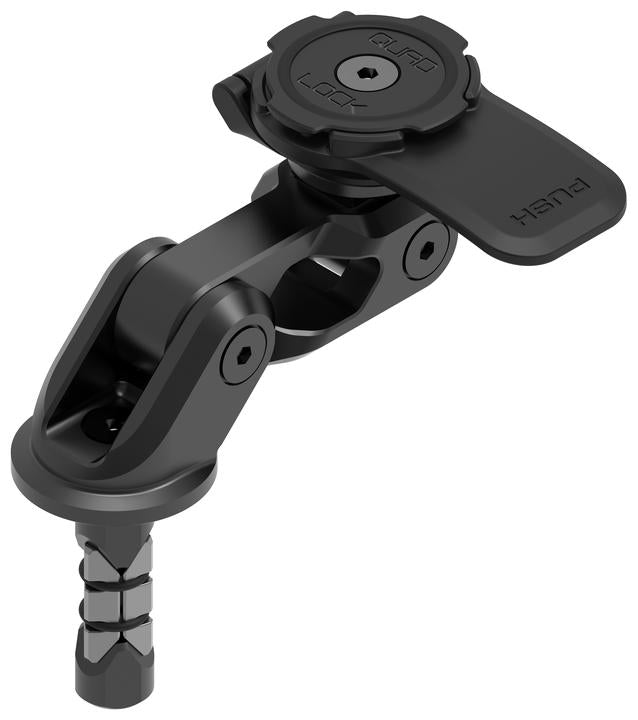

Quad Lock Motorcycle Fork Stem Mount Pro

PRODUCT DETAILS

FEATURES
- Black Anodised CNC machined Aluminium Base, Arm & Knuckle
- Designed for motorcycles that require mounting in the tube of the fork stem
- Multiple mounting configurations for optimal viewing position
- Fits a large range of stem hole sizes (refer below)
- No dissasembly required when adjusting position
- Preload resistance when adjusting position provides quality feel
- Discreet cable route for USB charging cables through extension arm
- Assembled with Black Lever
- Black Hardware

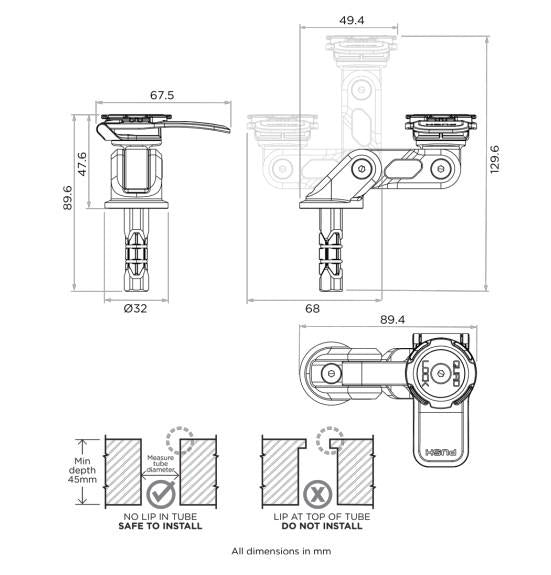

STEM HOLE COMPATIBILITY
- Small Stem Spacers - 12.4mm (1/2") - 19mm (3/4") diameter
- Medium Stem Spacers - 18.6mm (3/4") - 25.4mm (1") diameter

ADJUSTABILITY
- 180° angle adjustment of knuckle and arm (extended or collapsed position)
- 360° rotational adjustment of base via central stem

COMPATIBLE WITH
- All Quad Lock Cases & Universal Adaptors
- All Quad Lock Motorcycle Accessories (Vibration Dampener, Wireless/USB Chargers)
- All Quad Lock 360 Compatible products
- All Quad Lock Coloured Levers

INCLUDED IN BOX
- 1x Quad Lock Motorcycle Fork Stem Mount Pro
- 2x Stem Spacers - Small & Medium
- 1x M5 x 35 Black Screw (for use with optional Motorcycle Chargers)
- 1x 3mm Hex Key

MATERIALS
- Black Anodised Aluminium (Base, Arm & Knuckle)
- Glass Filled Nylon (Index Head)
- Zinc Alloy (Stem Spacers)
- Stainless Steel Hardware

TORQUE RATING
- Index Head Screw - 2.5Nm
- Knuckle & Arm Screw - 3.5Nm
- Stem Base - 3.5Nm
