Renthal
Couldn't load pickup availability

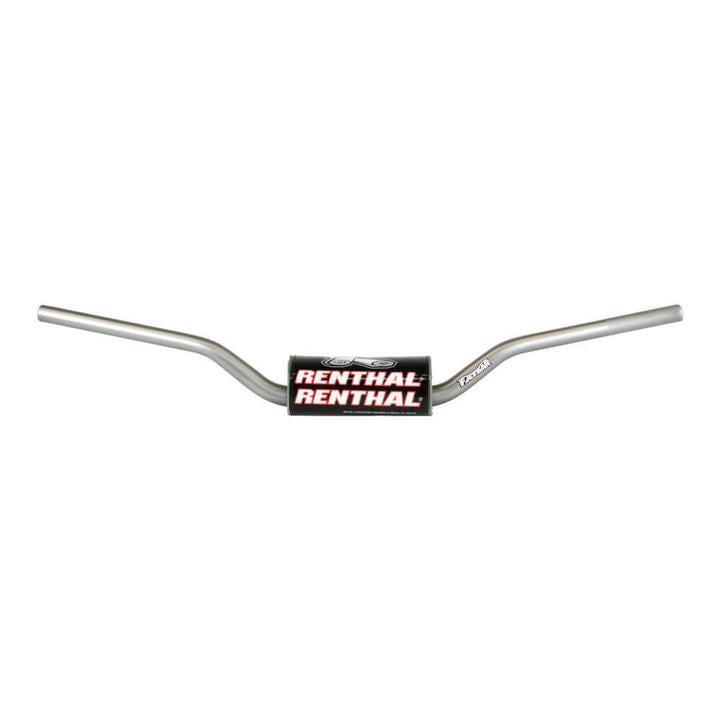

The championship proven Renthal Fatbar continues to set the industry standard in an unbraced tapered MX handlebar. The oversized (1-1/8in | 28.6mm) clamping diameter uses computer aided profiling tapering down to (7/8in | 22.2mm) to accept standard controls. Engineered from Renthal's exclusive 7010 T6 aluminium specially formulated to reduce vibration and provide superior strength.

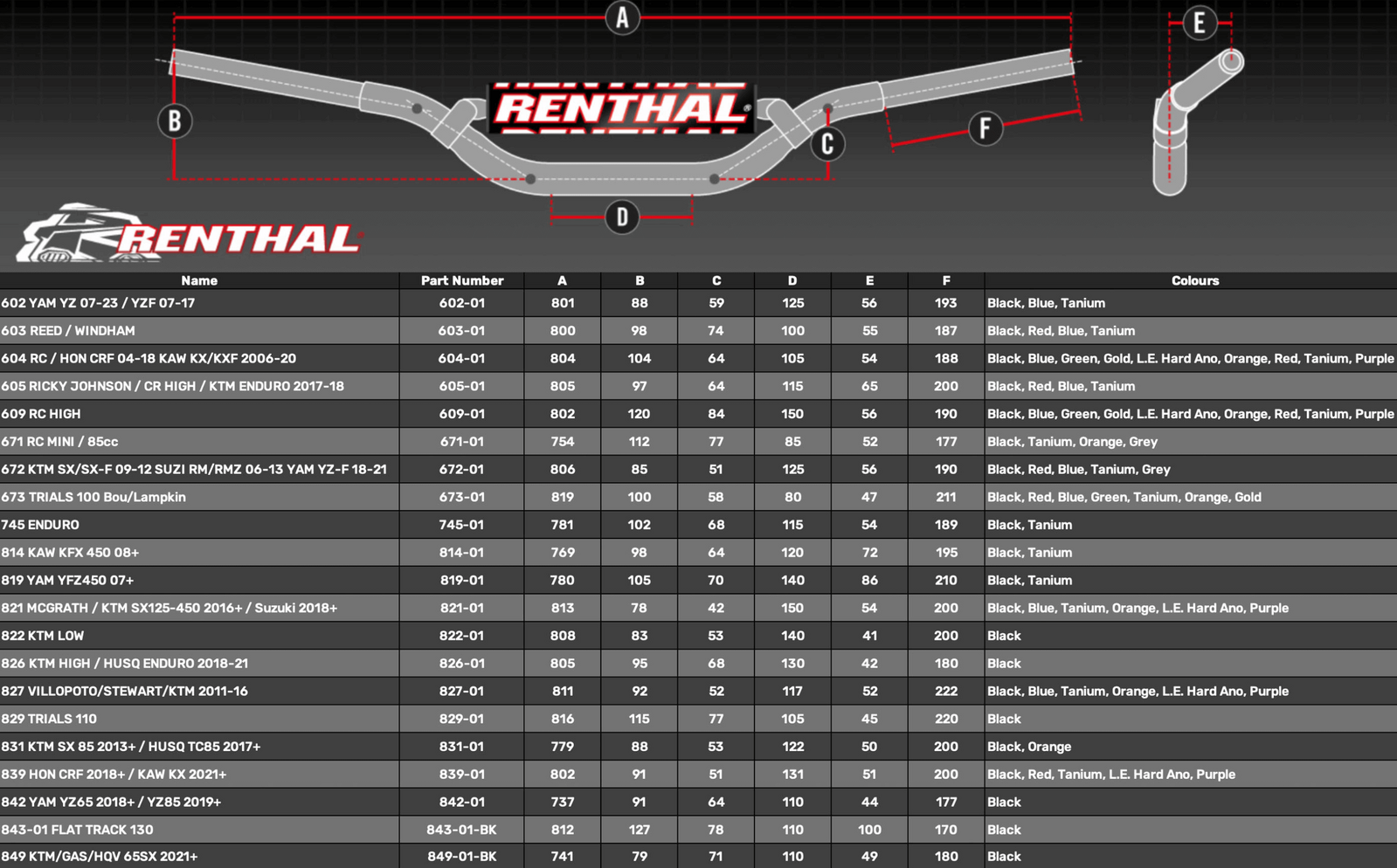

Width / Dimension A | 804mm |
Height / Dimension B |
104mm |
Rise / Dimension C |
64mm |
Clamping Width / Dimension D |
105mm |
Sweep / Dimension E |
54mm |
Control Length / Dimension F |
188mm |
Mounting Clamp Diameter | 28.6mm / 1+1/8" |
