Trail Tech Vapor Computer

Part No. TT752119
Fitment.
Honda CRF250R 2004-18
Honda CRF250RX 2019-20
Honda CRF250X 2004-18
Honda CRF450L 2019-20
Honda CRF450R 2002-18
Honda CRF450X 2005-21
Kawasaki KLX250 2004-08
Kawasaki KLX250S 2009-20
Kawasaki KLX300R 1997-08
Kawasaki KLX400R 2003-04
Kawasaki KLX450R 2008-21
Kawasaki KX125 1995-08
Kawasaki KX250 1995-08
Kawasaki KX250F 2004-20
Kawasaki KX450F 2006-20
Kawasaki KX500 1995-04
Suzuki DRZ400E 2000-21
Suzuki DRZ400S 2006-16
Suzuki DRZ400SM 2005-21
Suzuki RM125 2000-12
Suzuki RM250 2000-12
Suzuki RMX450Z 2009-18
Suzuki RMZ250 2004-18
Suzuki RMZ450 2005-21
Yamaha WR250 Z 1994-97
Yamaha WR250F 2001-19
Yamaha WR250R 2008-20
Yamaha WR250X 2008-12
Yamaha WR250Z 1998-03
Yamaha WR400F 1998-01
Yamaha WR426F 2001-02
Yamaha WR450F 2003-21
Yamaha YZ125 1995-21
Yamaha YZ125X 2020-21
Yamaha YZ250 1995-20
Yamaha YZ250F 2001-21
Yamaha YZ250FX 2015-21
Yamaha YZ400F 1998-99
Yamaha YZ426F 2000-02
Yamaha YZ450F 2003-19
Yamaha YZ450FX 2016-21
Vapor Speed, Temp, Tach, and more
Trail Tech offers a variety of model specific and universal kits for complete vehicle integration. All kits include mounting hardware, tach sensor, and power connection. Temperature and wheel sensors vary by kit.
Stay Informed!

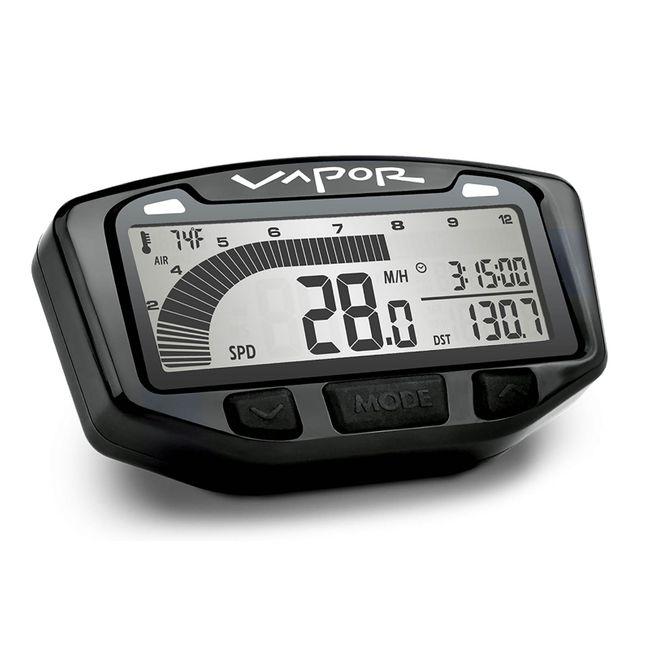

The Vapor speedometer/tachometer is a popular choice for both on and off-road enthusiasts. Vapor's large digital tachometer bar graph is easy to read. At a small size of 4.2 x 2.3 inches, Vapor is perfect for all types of riding like cross country, trail riding or at the track. The main features include a large RPM graph and speed readout, with much more data built in. At the top, programmable LED lights blink when its time to shift gears or during an over-temp event.
Vapor can replace an entire instrument cluster on your dashboard. Vapor displays speed, tach, engine temperature, ambient temperature, resettable distance, clock, ride time, and odometer. Maximum values are displayed for temperature, speed, and RPM (reset trip data to start fresh max values.) Use the built-in stop watch for race training, or resettable trip distance for enduro courses.
Installation is straightforward. Use the detailed instructions to fit Vapors sensors to the vehicle and plug them in using the white waterproof connectors. Customize and fine tune Vapor for tire size, tach sensitivity, and trigger temps for the temp and tach warning lights. Vapor can operate on regulated AC or 12V DC electrical systems, meaning it works on almost everything.
An indicator dashboard accessory (022-PDA) is available if indicators are required, providing space for 4 indicator lights such as neutral and high beam.
Vapors small size and ability to mount to any vehicle makes it a good choice for most applications.

In the box:

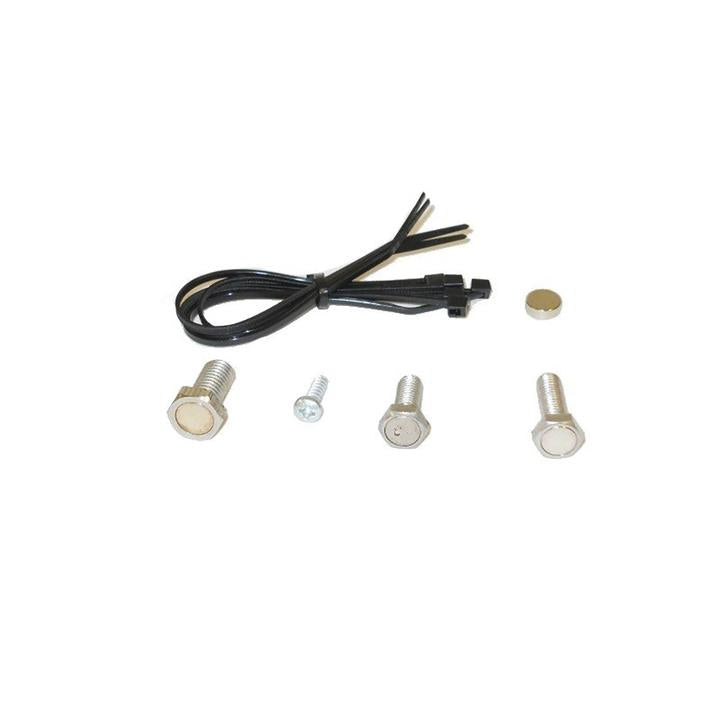

19mm Water Sensor
Magnet Kit
Wheel Sensor

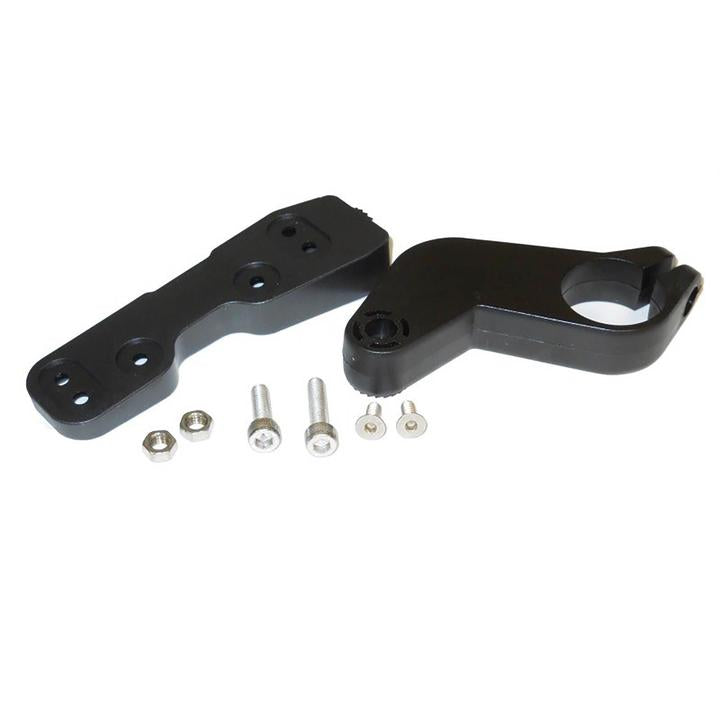

Mounting Kit

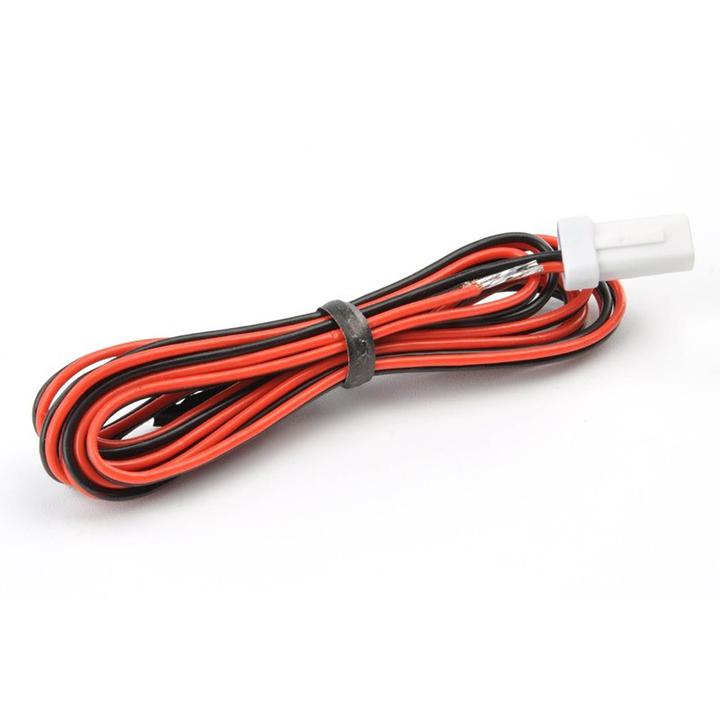

Power Lead
Ignition Sensor
